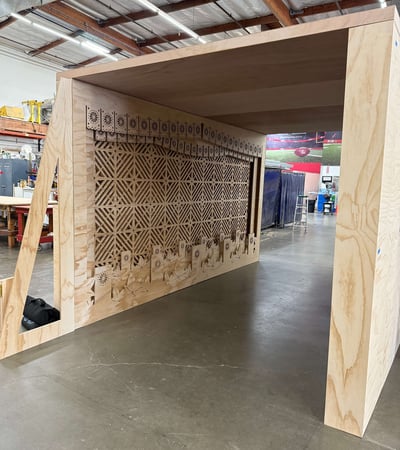

ASV's approach to lightbox fabrication started with carefully selecting ¾" plywood for its stability, workability, and capacity to hold finishes. Using plywood made fabrication more affordable while ensuring the strength needed for large installations.
The design showcased complex geometric patterns and layered components that ASV brought to life using advanced CNC cutting technology– a vital requirement for a cohesive installation look. This precise machinery enabled ASV to cut intricate designs with outstanding accuracy, ensuring that each lightbox part met strict specifications.
ASV engineered the lightboxes with layered construction, where each design layer was set 1" above the layer below it, creating depth and visual interest. This layered method required careful engineering planning to ensure proper alignment, support, and aesthetic appeal. The offset layers also allowed light to pass through, producing dramatic shadow effects and enhancing the installation's visual impact.
To protect the wood components from weather exposure and ensure durability beyond a single season, ASV implemented a comprehensive finishing process. All plywood components were professionally stained to achieve the desired color and aesthetic, then sealed with two protective clear coats. This multi-step finishing process created a strong barrier against moisture, UV damage, and environmental wear, extending the lifespan of the lightboxes and safeguarding the client's investment

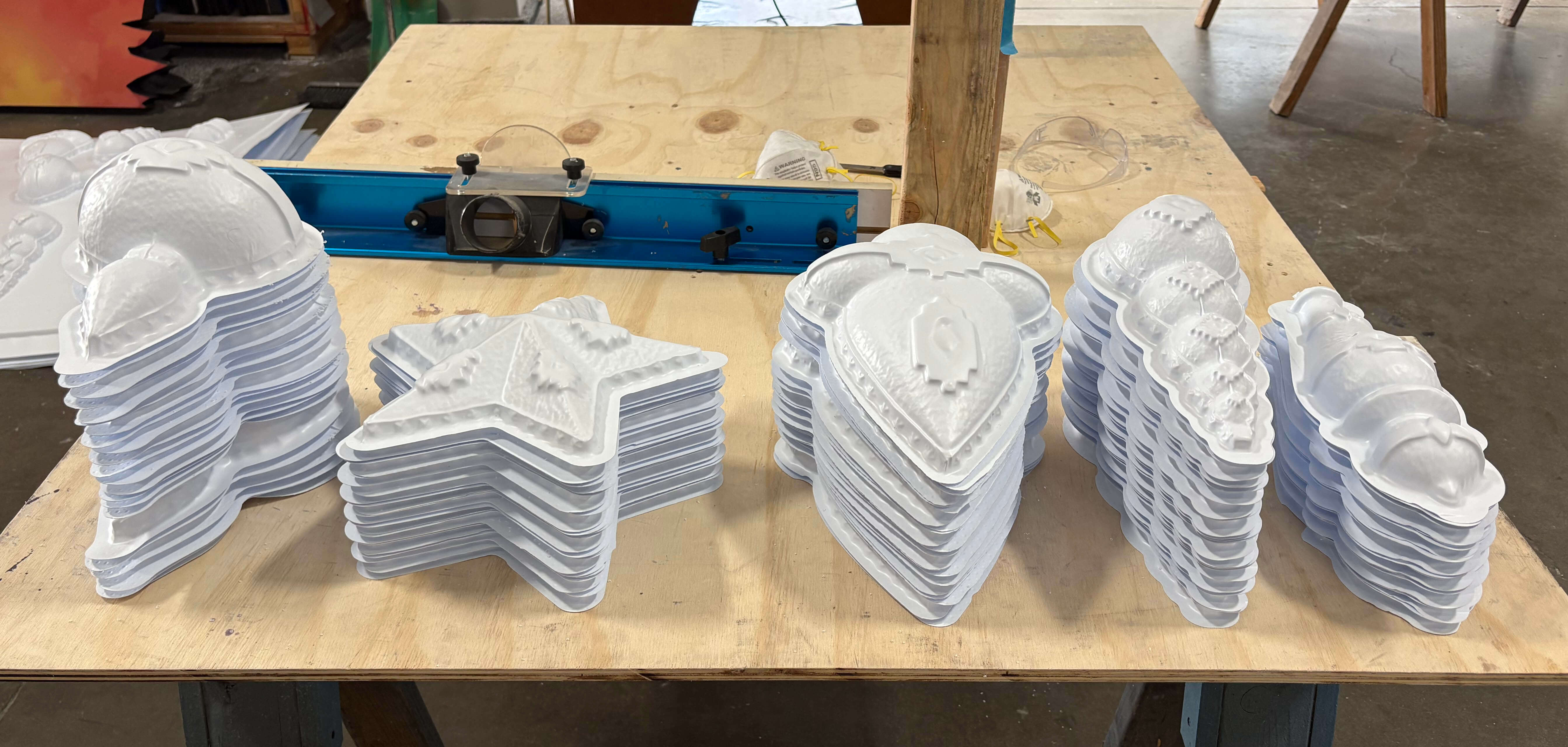

The ornament production was one of the most technically challenging parts of the project, requiring a manufacturing process that could produce 545 units while keeping consistent quality across five different design variations.
ASV's approach started with creating prototype-to-master pieces for each of the five ornament designs. These masters served as templates for vacuum forming. Vacuum forming involves heating plastic sheets until they are pliable, then pulling them over a mold using vacuum pressure. This method allowed ASV to produce multiple copies of each design efficiently while keeping dimensional accuracy.
Once the plastic sheets were vacuum-formed, ASV took on the detailed task of hand-cutting each ornament from the formed plastic. The cut ornaments were then individually glued onto pre-assembled string lights, combining electrical functionality with decorative elements.

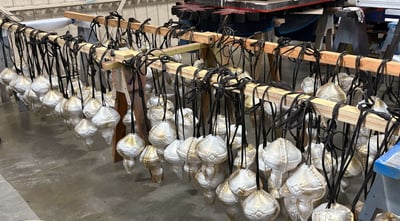

After assembly, each ornament was given a final gold spray finish to ensure visual consistency across the entire batch. The spray process required careful application to achieve even coverage without drips or flaws.
ASV performed dimensional checks, visual inspections of finish quality, and functional testing of the integrated lighting components.
%20cropped.jpeg?width=400&height=293&name=Lightbox%20Install%20(1)%20cropped.jpeg)

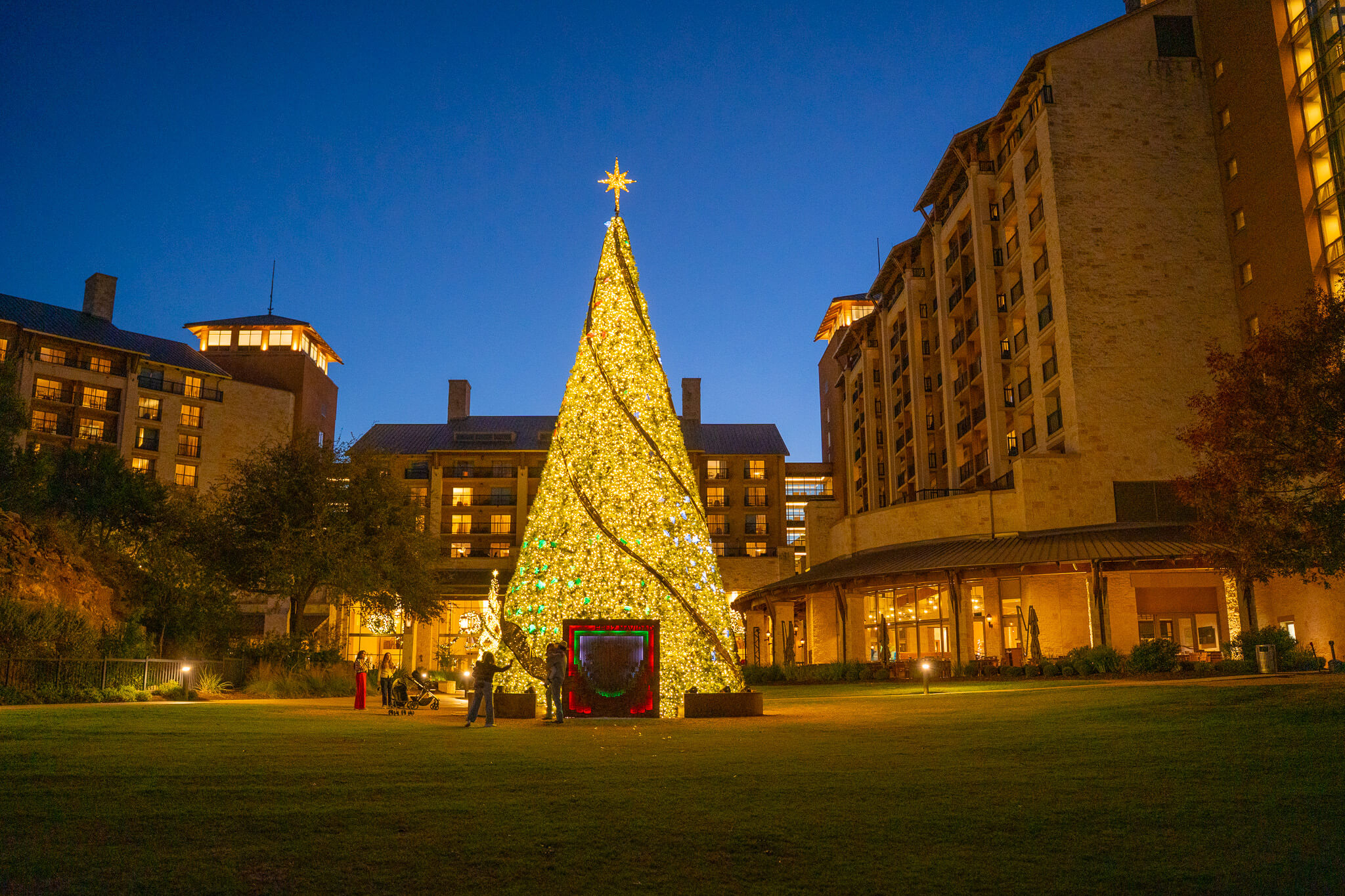

Beyond manufacturing the lightboxes and ornaments, ASV offered technical support to ensure these components integrated properly into the larger installation. The company collaborated with Lightswitch and the JW Marriott team to confirm that all fabricated elements matched the overall design vision and installation plans. ASV's expertise in material handling, best practices for installation, and coordination of components helped ensure a smooth transition from the fabrication shop to the final installation at the property.
